"BEFORE-AFTER" SCENARIO ANALYSES

Statistical tools for Cumulative Impact Assessment Sustainable Land Planning, Mitigation & Restoration measures

Can we predict the impact of an infrastructure before it is built? Or the efficacy of mitigation measures?

Yes, scenario analyses can simulate the consequences of changes in the landscape, such as the impact of building new infrastructure (e.g. hydropower, tourist resorts, roads, railways..) or increasing traffic volume on roads, or tourist volume on trails. We can also predict the effect of mitigation, restoration or off-set measures, e.g. removing or re-locating roads, tourist resorts or ski trails, or build bridges or tunnels.

Scenario analyses can be used proactively, to forecast impacts of development plans, or retroactively, to assess the impact of existing infrastructures. Results are expressed as Km2 of functional habitat that is lost or gained ["Equivalent Connected Habitat"; 12, 1,2,3,4,5]. We typically test a range of mitigation options suggested by stakeholders, and rank the most efficient ones[1,2,3,4,5]. Entire area development plans can also be tested. New developments allow also to "ZONATE", i.e. analytically identify priority-areas for mitigation or restoration [1,2,3,4,5].

Statistical maps and transparent, quantitative estimates of impacts - especially when developed by involving stakeholders and integrating local information, help minimizing the potential for societal conflicts in land planning, and achieving sustainability goals.

Quantifying cumulative impacts enables identifying joint solutions

Example 1: How much reindeer habitat was lost after building one of the largest hydropower complex in Europe?

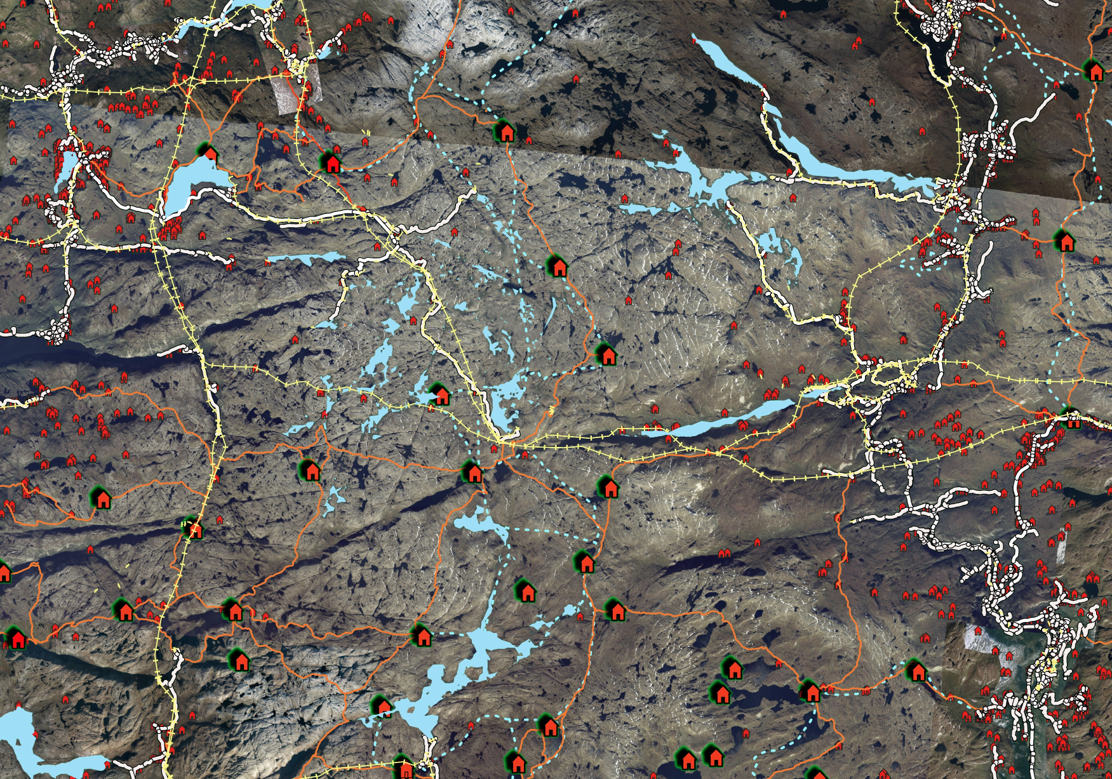

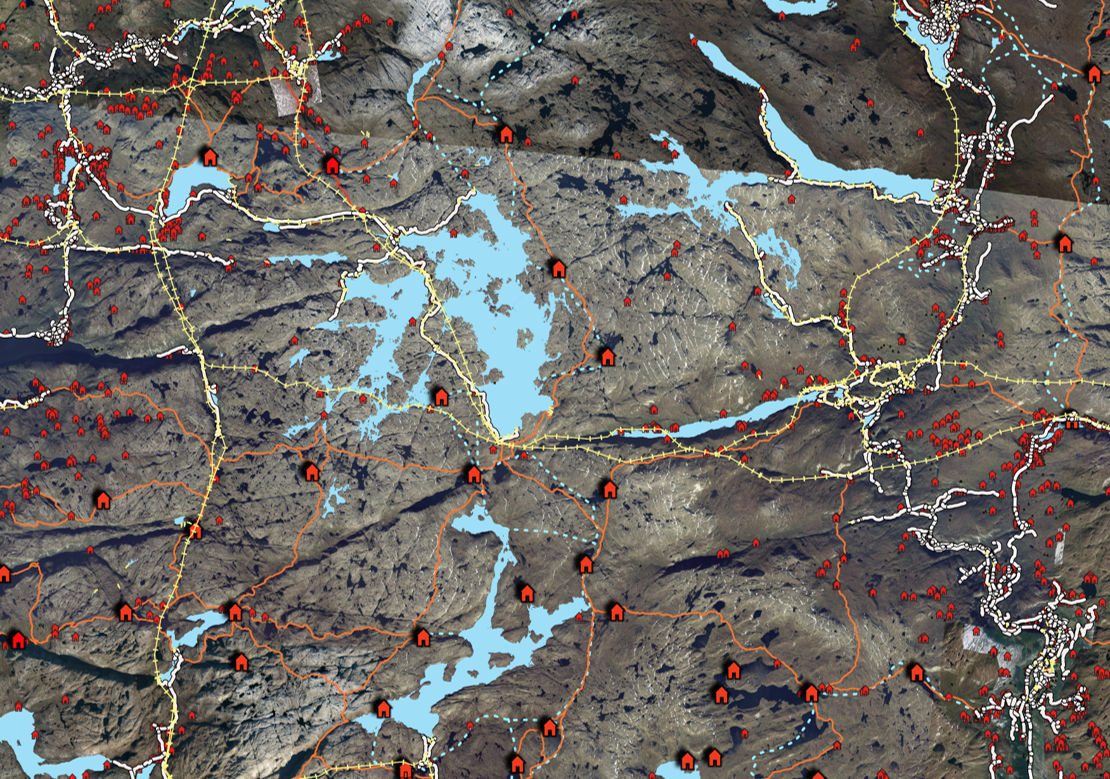

Fig 1. Before-after constructing the reservoir (Blåsjø area; Setesdal Ryfylke, Norway).

Hydropower development caused habitat loss and barriers for reindeer. To estimate its cumulative impact, we simulated the removal of magazines and assessed its effect on reindeer.

Moving the slider shows the landscape BEFORE (1973, left [Ref: 1]) & AFTER construction (right), when 110 Km2 of land were inundated.

Fig 2-3 below show that the impact on reindeer extended far beyond the reservoir, and that the amount of good and connected habitat lost to hydropower is far larger than the amount of land inundated [1].

For simplicity, other infrastructure (roads, powerlines, tourism..) are assumed to be unchanged. This is therefore an underestimation of the cumulative impact of the hydropower complex. Image: Dorber et al 2023 (CC BY-SA)

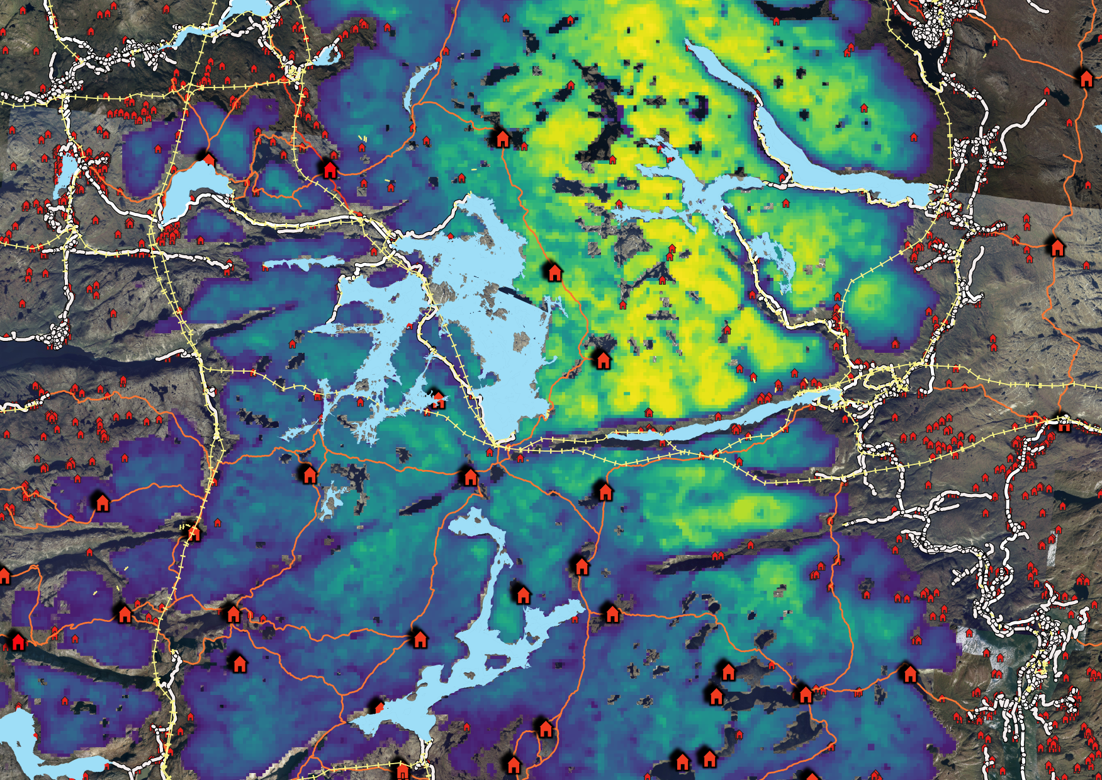

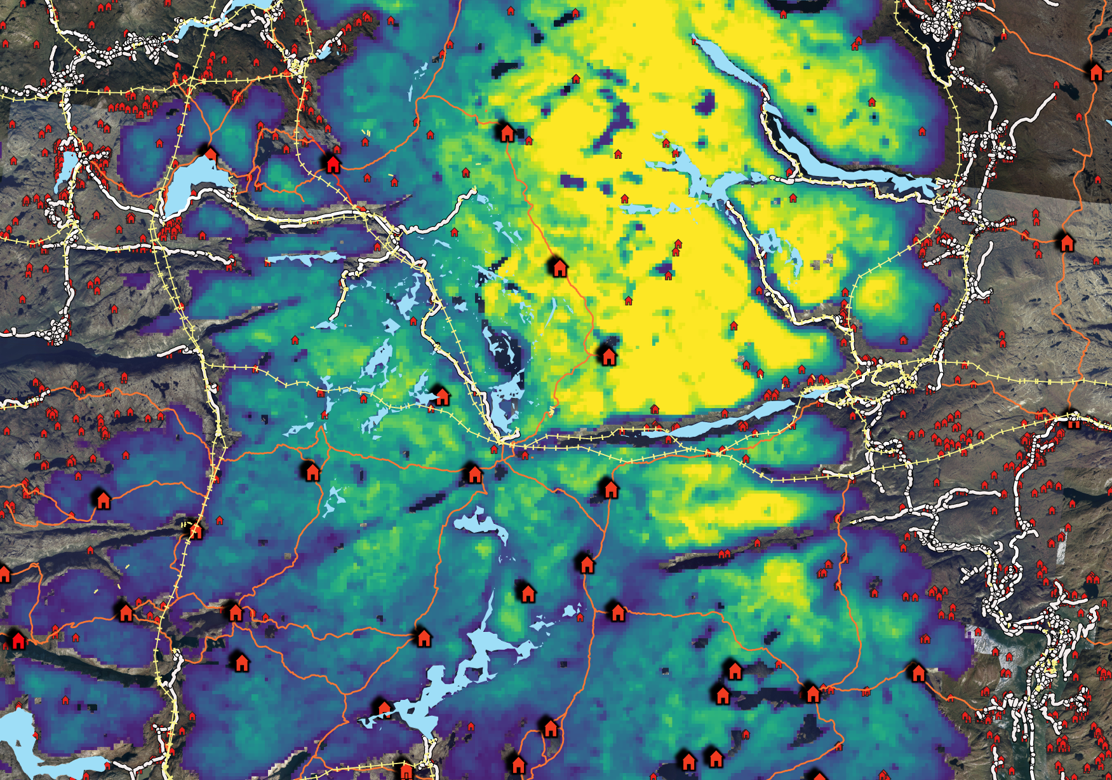

Fig 2 - REINDEER HABITAT LOST: 222 km2

Moving the slider allows to see that an estimated 222 km2 (or 31 092 soccer fields) of functional reindeer habitat were lost due to construction of hydropower magazines. This corresponds to 47% loss of functional habitat in S. Ryfylke (Fig 4) [1; 12].

NB: these estimates are highly conservative as they consider only the impact of reservoars (i.e. ignore access roads, dams, powerlines etc), consider only reservoar built after 1973, do not consider changes in other infrastructure, and consider only the impact on summer habitat.

Color code: Yellow: hihgly functional habitat (good and easily accessible). Blue: poor quality and/or isolated habitat

Image: Dorber et al 2023 (CC BY-SA)

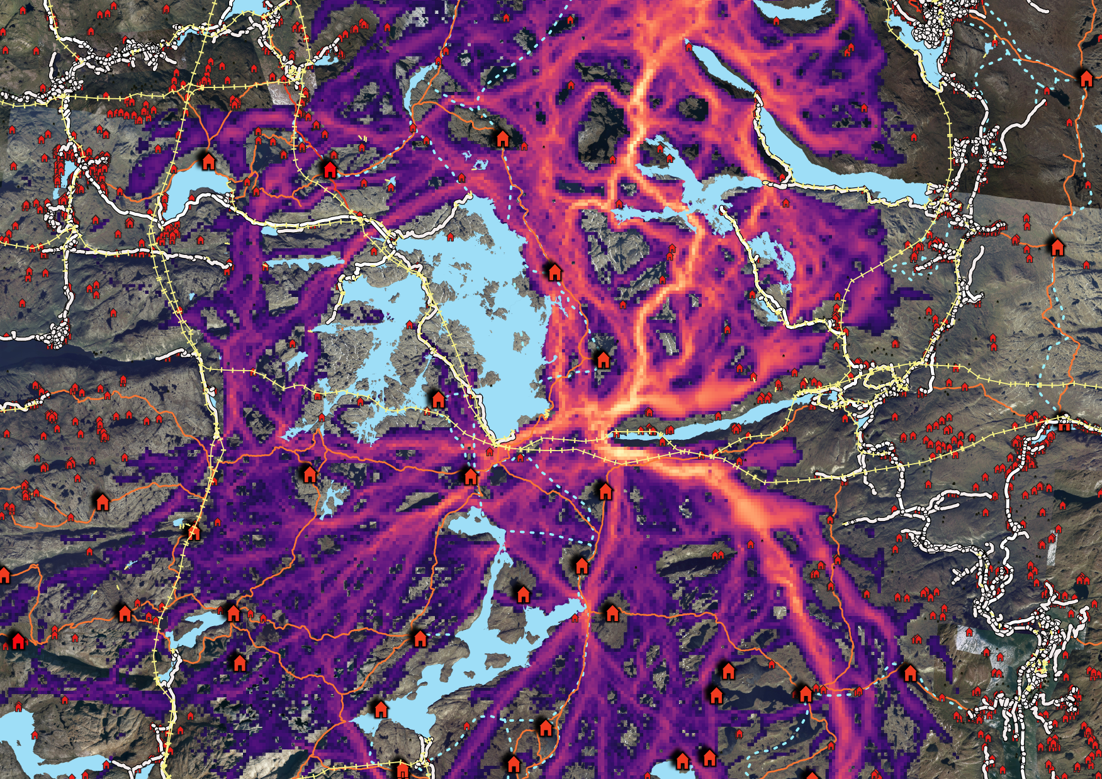

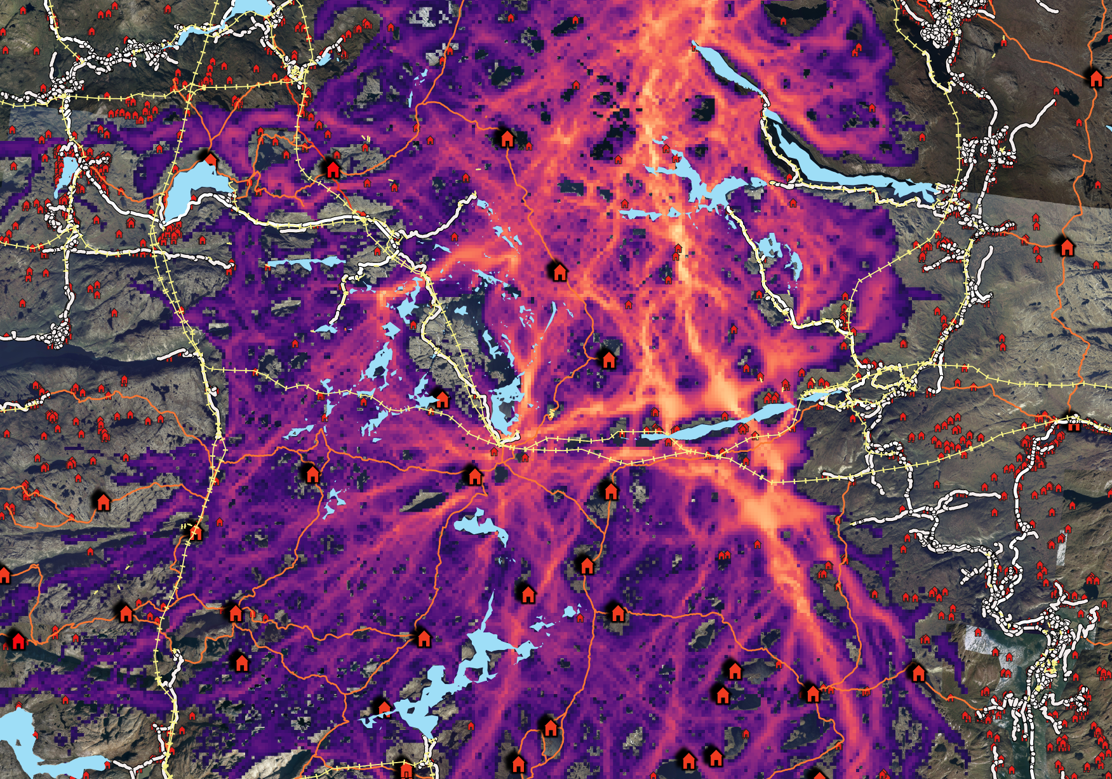

Fig 3 - REINDEER CORRIDORS LOST

Moving the slider shows that ca. 44% of reindeer corridors were lost after the construction of reservoirs [1, 12] (Fig 4).

NB (as above): these values underestimate the total impact of hydropower on reindeer, as they consider only the impact of reservoars (i.e. ignore access roads, dams, powerlines etc), consider only reservoar built after 1973, do not consider changes in other infrastructure, and consider only the impact on summer habitat.

Color code: Lighter color: most important movement corridors (or "pinchpoints", "bottlenecks") needed for reindeer to reach good, functional summer pastures. Dark: Few movements

Image: Dorber et al 2023 (CC BY-SA)

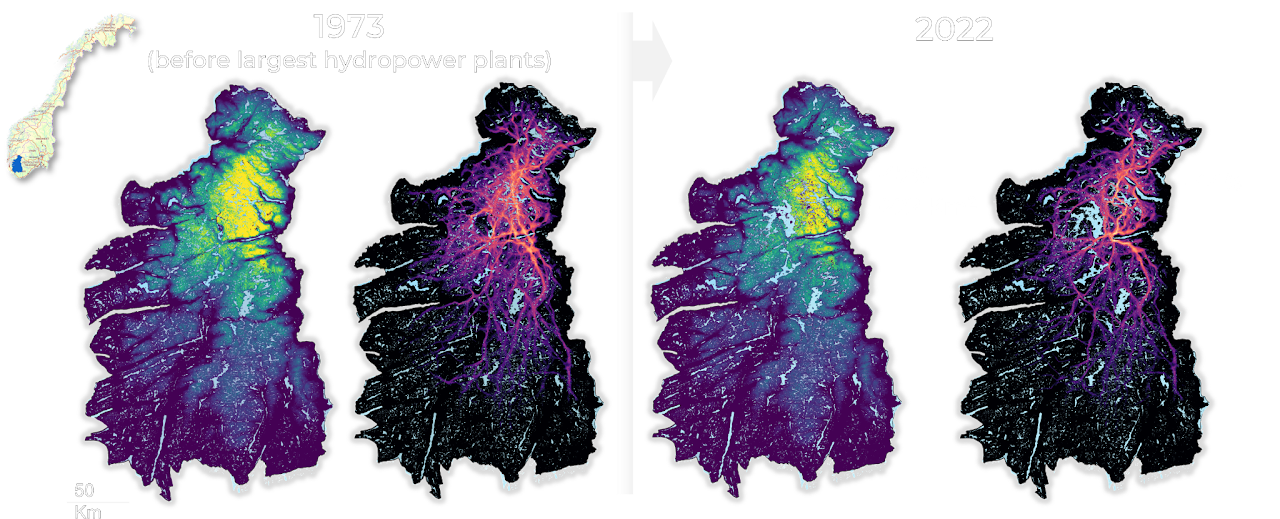

Fig 4. FULL AREA OVERVIEW.

Overview of Setesdal Ryfylke managment area, Norway (Fig 1-3 above zoom-in the central area). We stimated that the construction of hydropower reservoirs built aftwer 1973 caused the loss of 222 Km sq. of functional reindeer habitat (yellow), and of 44% or corridors (orange-lilla) [1, 2, 12].

Suggested mitigation measures (Fig 7, 10) are crucial, but would yield only 2-12 km2 of the habitat lost. Proactive sustainable land planing is crucial [1]

We also estimated that, in total, 2148% of the habitat has been lost due to all human infrastructure ever built in Setesdal Ryfylke.

Video description in Norwegian

Example 2: Effect of mitigation / restoration: remove roads, cottage & trails

Following the request of a board of local experts, we simulated the effect of a hypotetical scenario: remove a tourist cottage (Reinheim), hiking trails (red) and roads (orange) in the Snøhetta wild reindeer management area. NB: part of these measures were implemented within a habitat restoration project to restore an old military area, and yielded an estiamted ca. 12% of functional habitat [2,3,4, 12]. (move before-after slider, below). Images: Panzacchi et al 2022 (CC BY-SA)

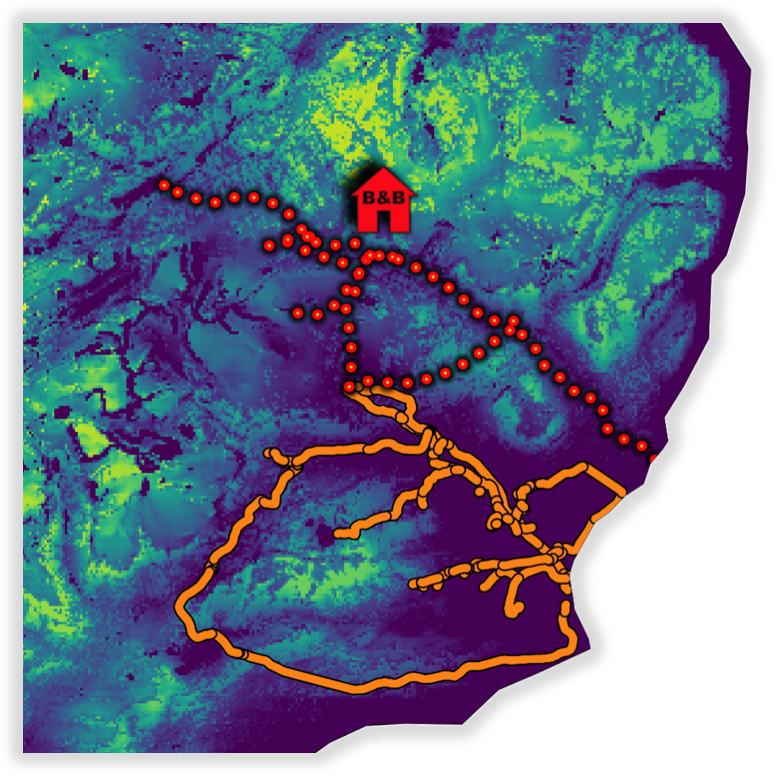

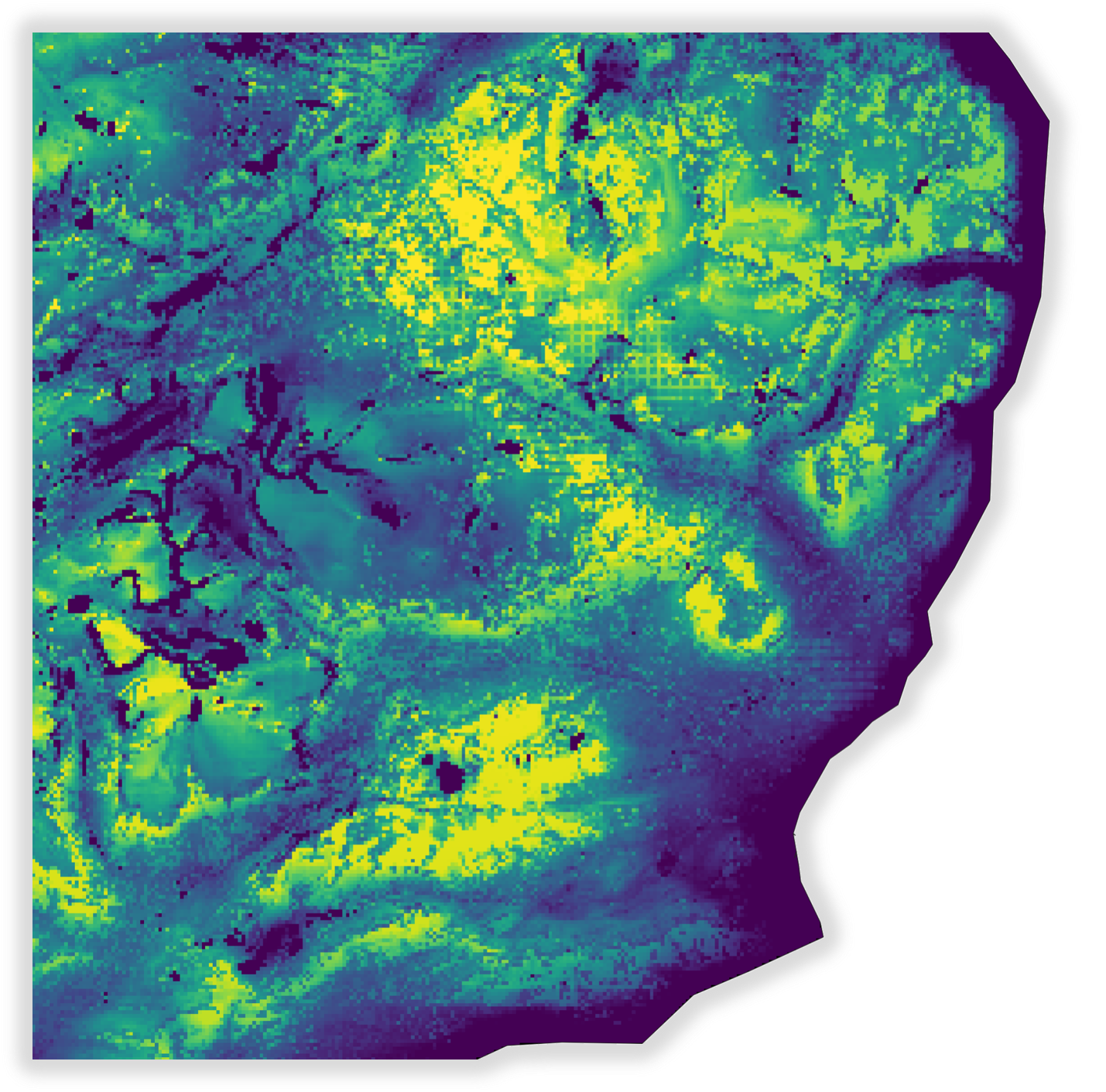

Fig 5.

Functional habitat (good quality & well-connected habitat, lighter color) before and after the hypothetical removal of tourist cabin, trails and road. The mitigation action would be expected to recuperate ca. 63.8 km2 of funcional reindeer habitat

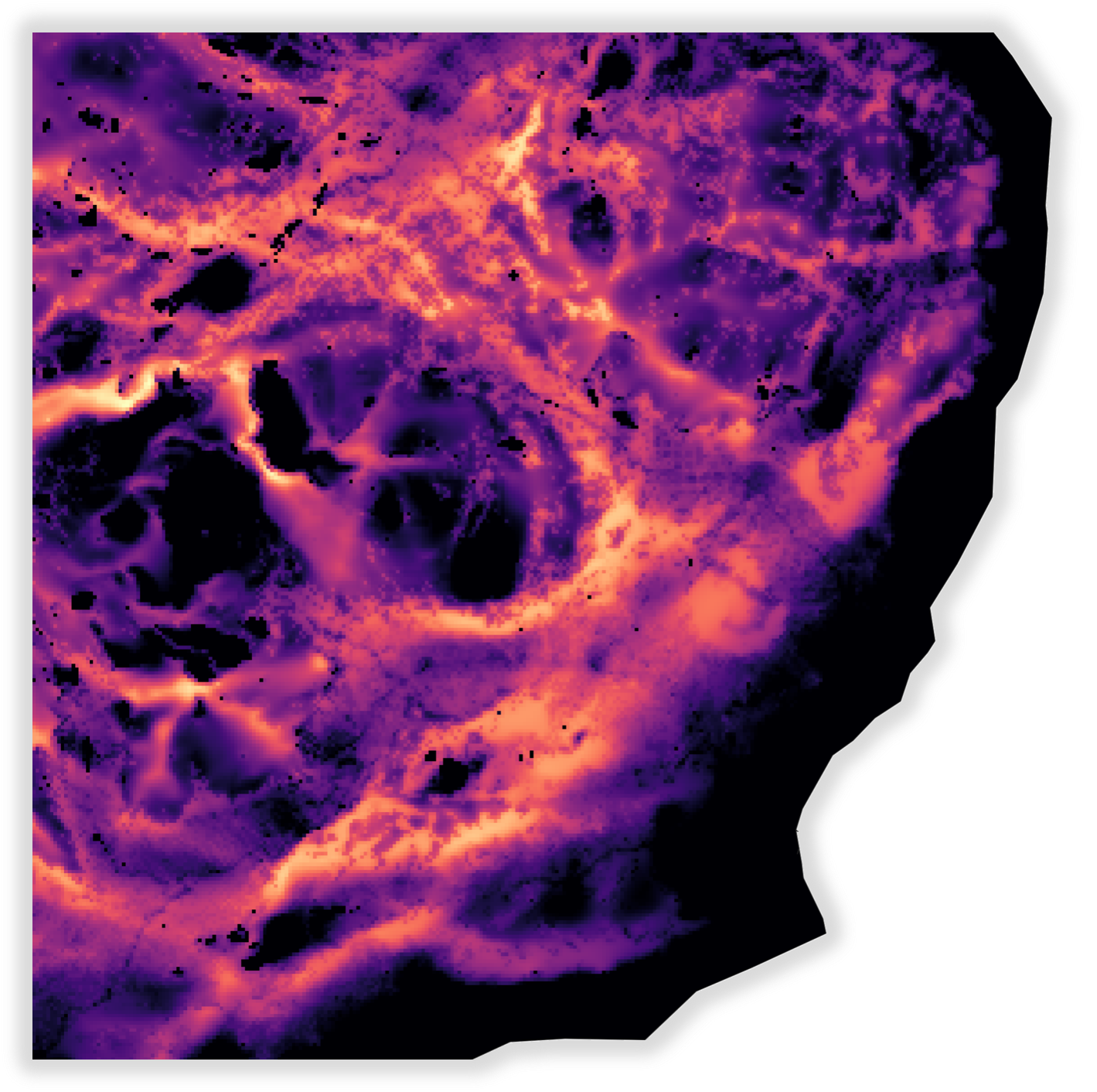

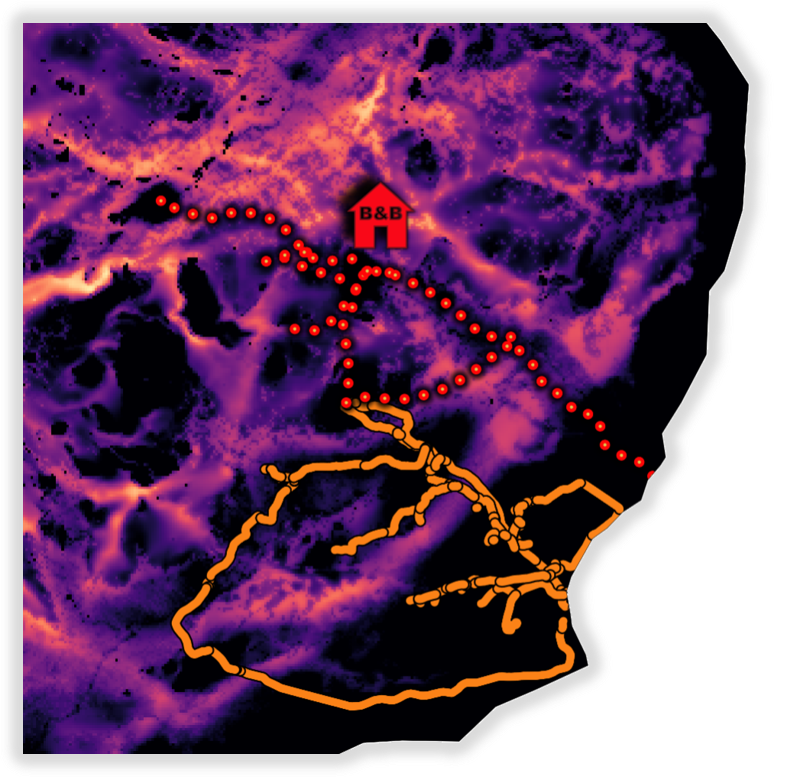

Fig 6.

Movement corridors (lighter color) before and after the hypothetical removal of tourist cabin, trails and road. According to the scenario analysis, an almost lost movement corridor would be recuperated to a large degree (+26%). Images: Panzacchi et al 2022 (CC BY-SA)

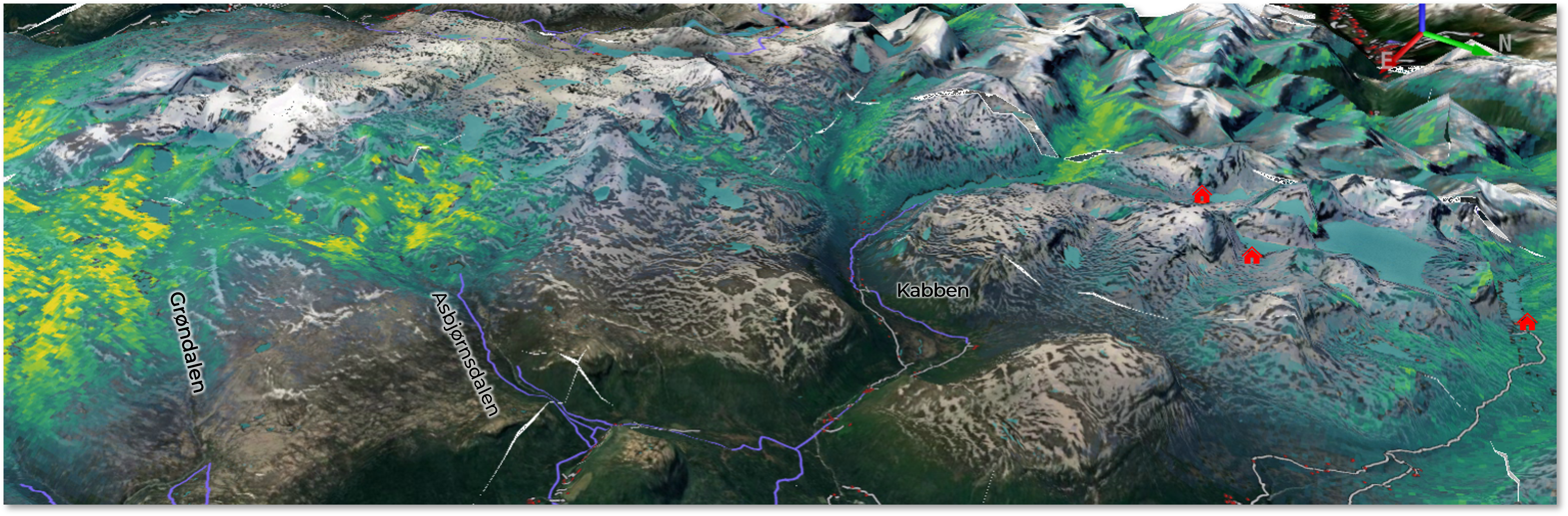

EXAMPLE 3: EFFECT OF CLOSING TOURIST INFRASTRUCTURE (Reinheimen-Breheimen wild reindeer area, Norway)

Until recently the area around Puttbudalen was used by wild reindeer, aslo as a calving ground. In the last decades, no observations were recorded, possibly due to increased tourism, that might represent a barrier and fragment the reindeer popualtion.

We estimate that closing a tourist cottage, ski tracks (and hiking trails, in summer), and a road would lead to a 17 km² (2366 soccer fields) increase in functionally connected calving areas (yellow-green, Fig. above). Connectivity would increase even more during migraiton (+ 19 km² - yellow-red, Fig. below). Improvements could be seen also in summer and, to a lower degree, winter. See here, report Panzacchi et al 2024 ([01] here and here)

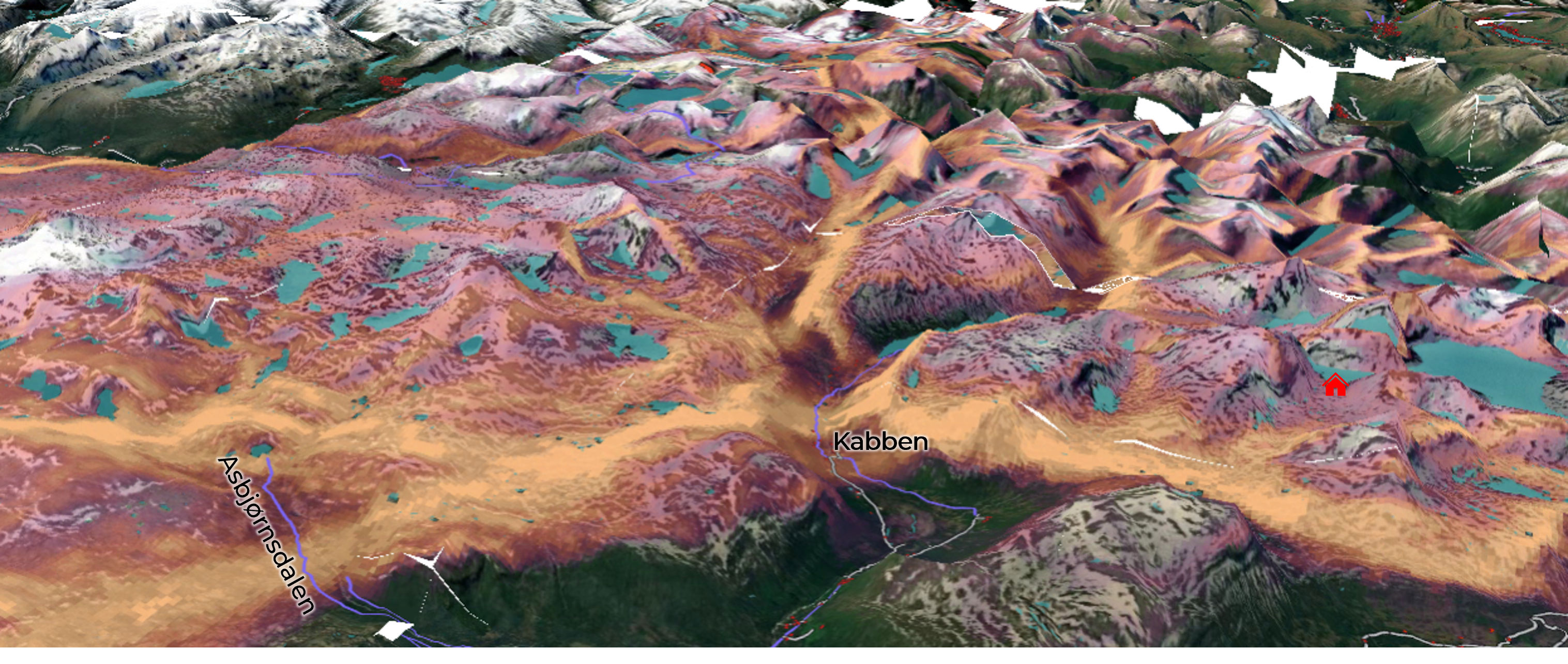

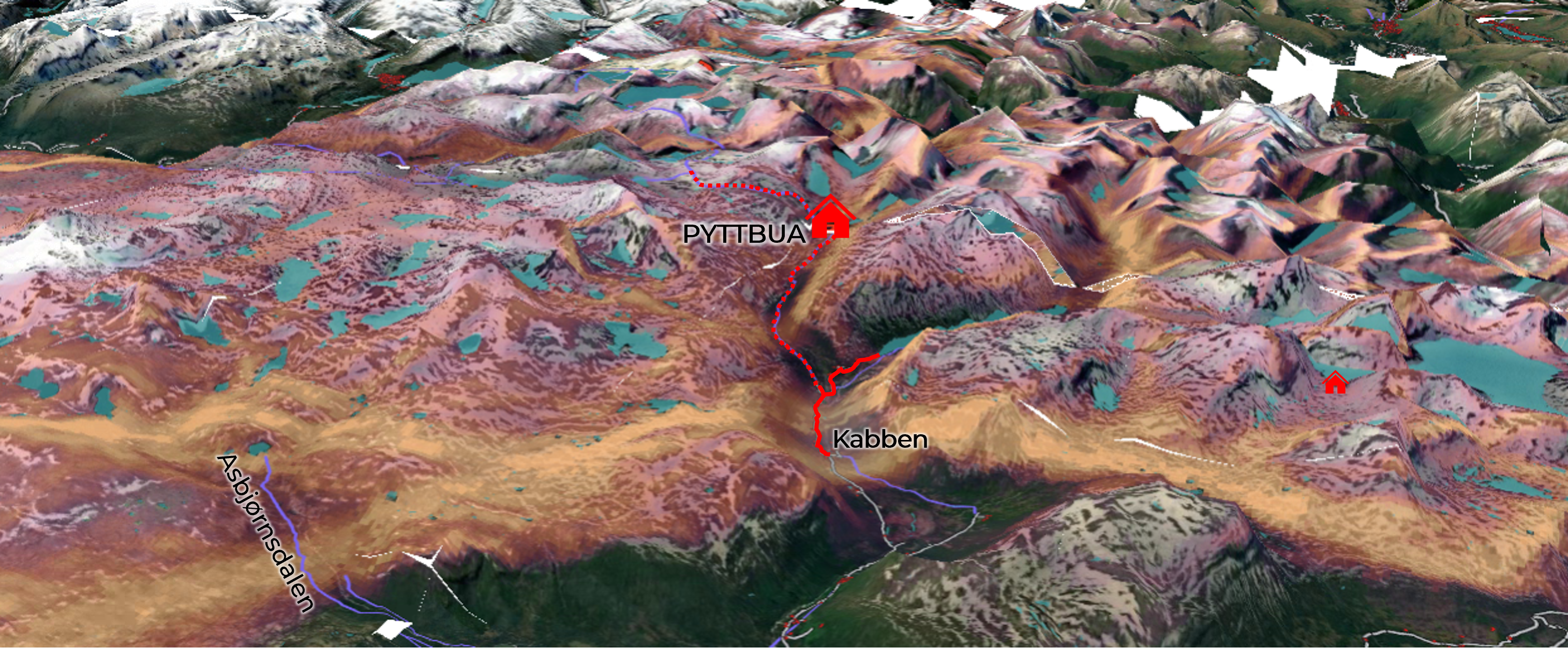

POSSIBLE MIGRATION ROUTES - before and after mitigation

List of 76 scenarios assessed in Norway - within the Research Council project RenewableReindeer

Our aim was to identify a list of the most realistic and effective mitigation and off-set measures to reduce the impact of hydropower on wild reindeer in Norway. Local reindeer experts and stakeholders suggested 76 possible measures that could be helpful to improve the conditions of several wild reindeer ranges. These measures consisted in: closing/restricting access to roads, hiking trails and skiing trials, close or re-locate tourist cottages, and build land bridges over hydropower magazines - and combinations of those. We analytically tested the expected effect of all scenarios suggested, and we ranked their expected efficacy, to guide decision-making and sustaianble land planning. The main results are presented below, and are described in detail in [2].

Below we present: (1) an overview of the 76 scenarios tested in 3 wild reindeer management areas (Setesdal Ryfylke, Snøhetta and Nordfjella). (2) an overview of the main results, for summer; (3) a table with all results of the expected effect of each of the 76 simulations in Setesdal [1,2], Snøhetta [2,3,4], Nordfjella [2] for summer and winter. A detailed description of all results, in Norwegian, is presented in [2]

Note that additional simulations have been made for Hardangervidda (4 mitigation measures tested, see: [5], and in the Brokke-Suleskard area (Setesdal Ryfylke), where we supported local land-planing processes by testing for the effect of 37 land-planning alternatives (results in [2, Appendix 2])

1. Scenario overview

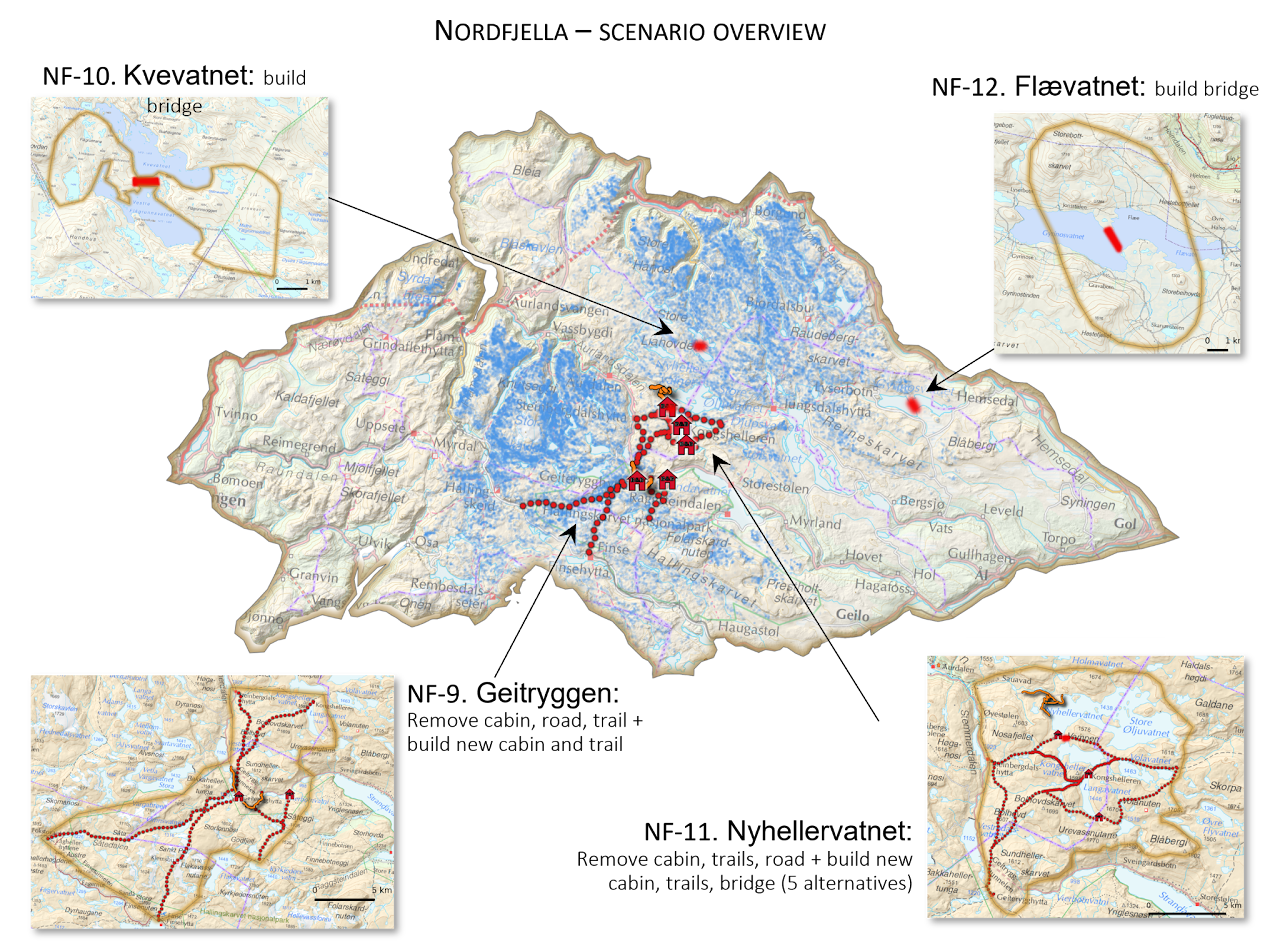

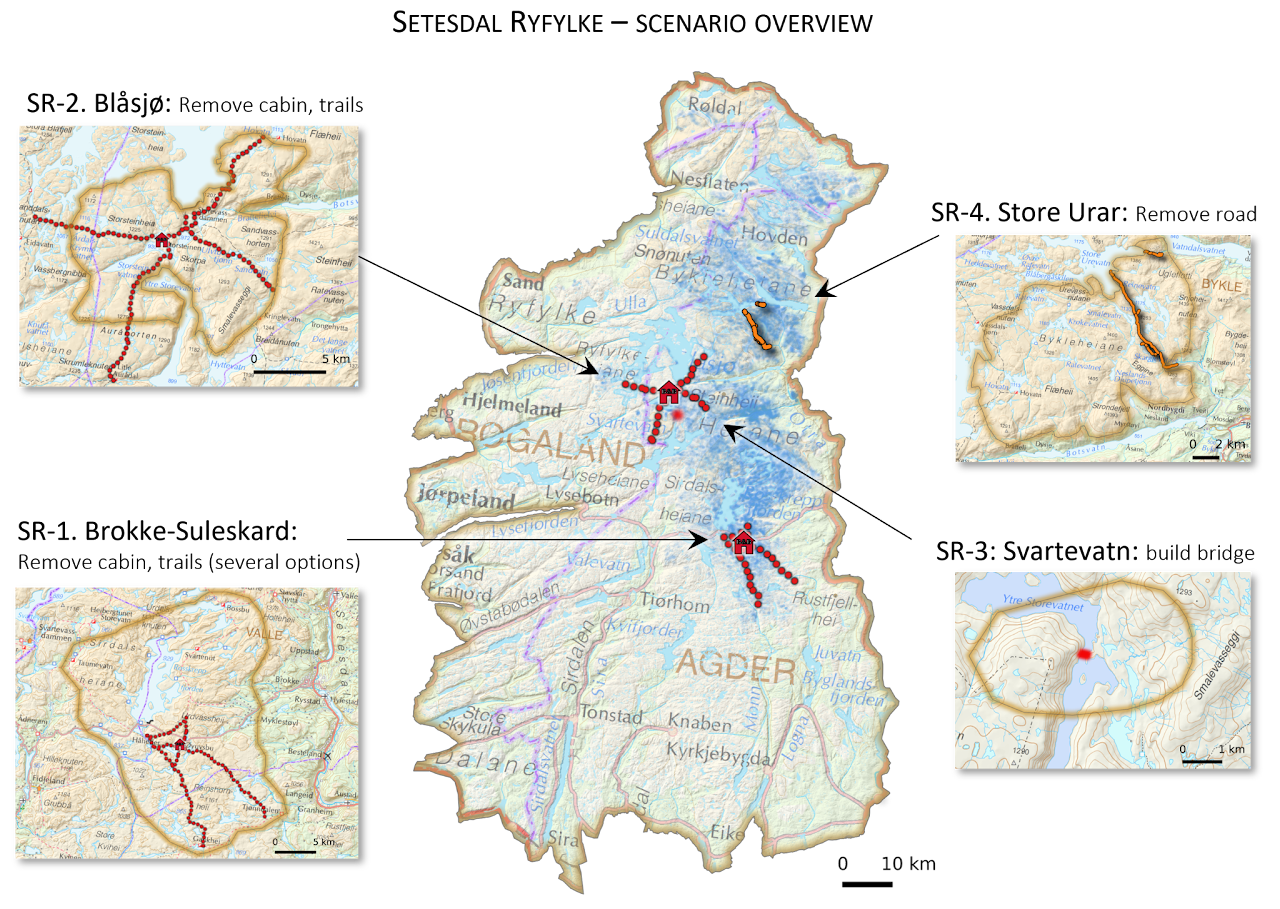

Below we present a description of the main mitigation measures tested in Setesdal Ryfylke (SR), Snøhetta (SN) and Nordfjella (NF) wild reindeer management areas. Blue dots represent GPS data. Each scenario is identified with a code (specifying the area and a progressive number), and is illustrated in waht local experts identified as the focal area of interest (yellow). Here we show proposed mitigation measures for the summer season (e.g. removal of hiking trail), but scenario for winter (involving for instance the removal of ski trails) have also been tested. All results are reported in the table below. Details in: [2]

NB: in addition to scenario SR-1 (Brokke-Suleskard), where we tested the effect of removing the cabin Øyulvsbu and associated trail network, we tested also 37 land planning alternatives to support local communities achieving a more sustaianble development of recreational activities in the area, by relocating the cabin and trails in areas where their impact of reindeer would be smaller; these results are shown in [2, Appendix 2]. All images: Panzacchi et al 2022 (CC BY-SA)

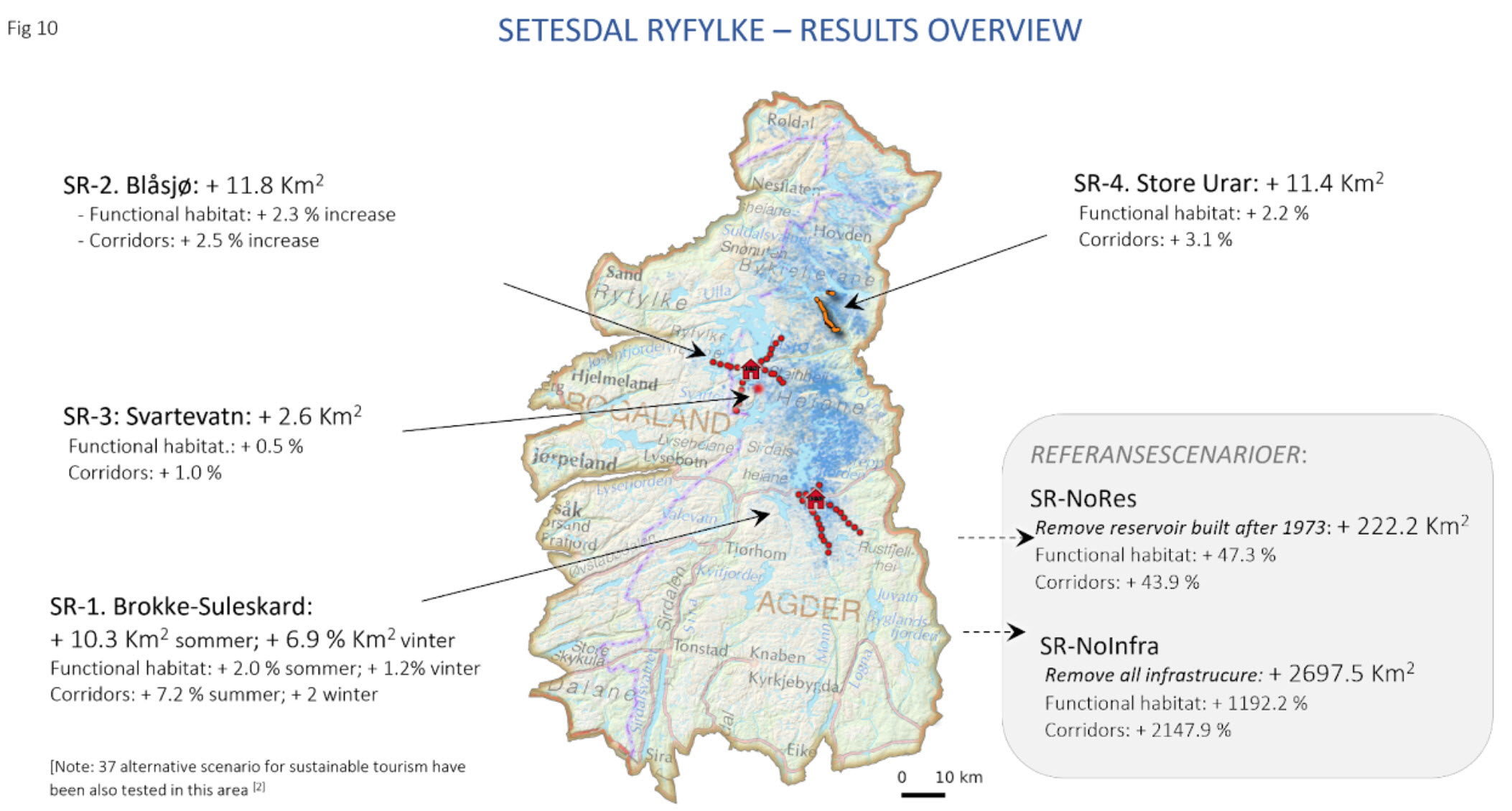

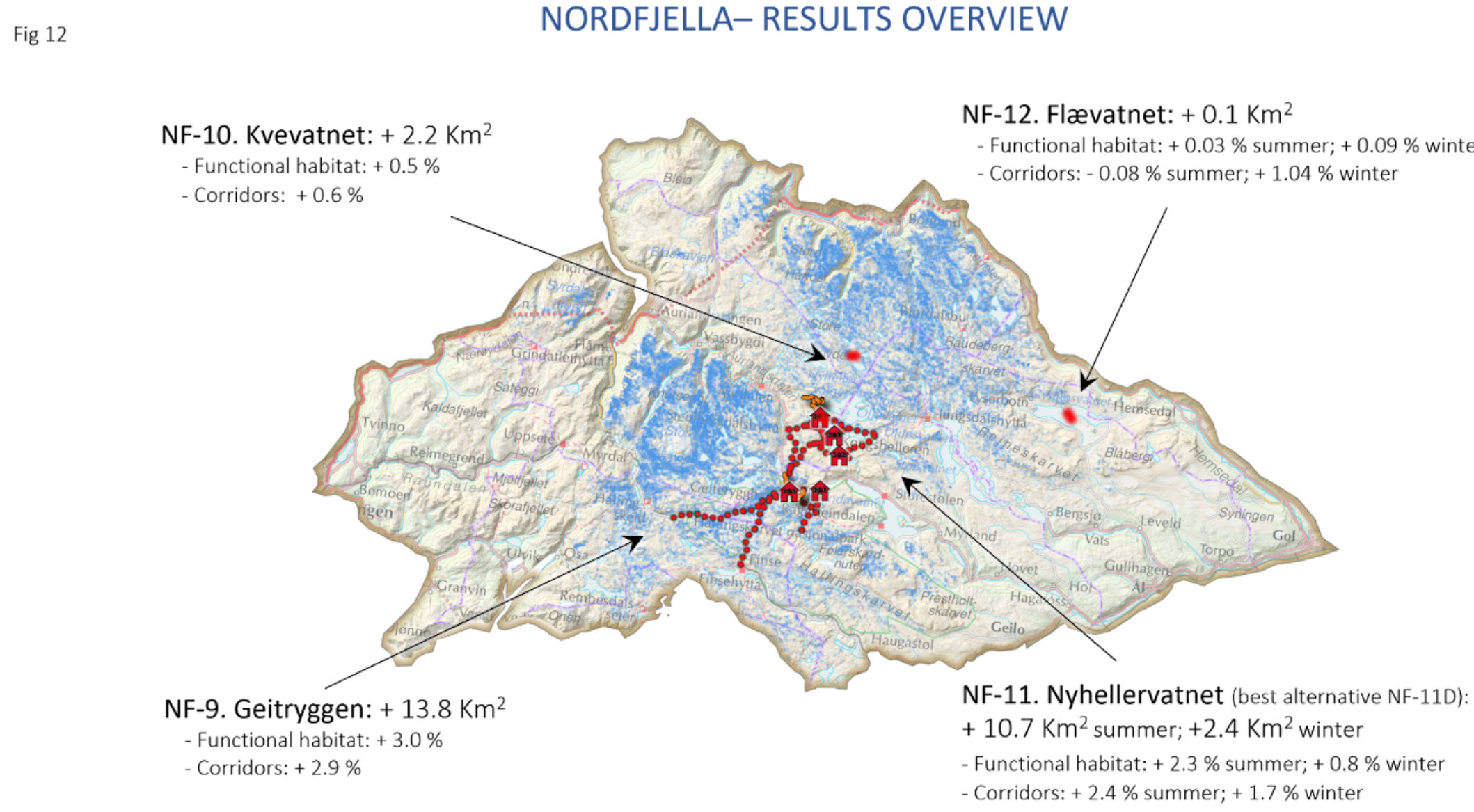

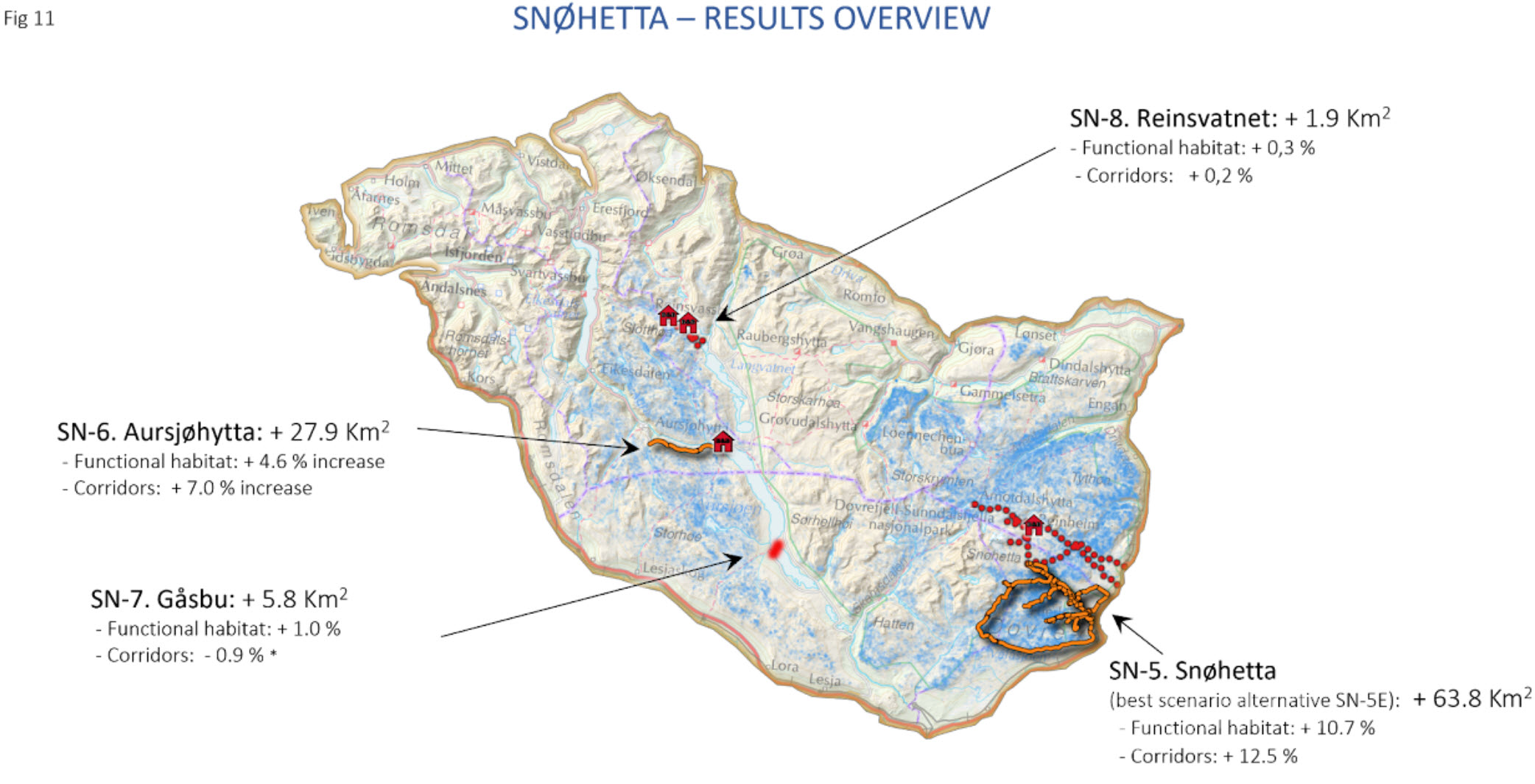

2. Results overview

3. Full list of results overview

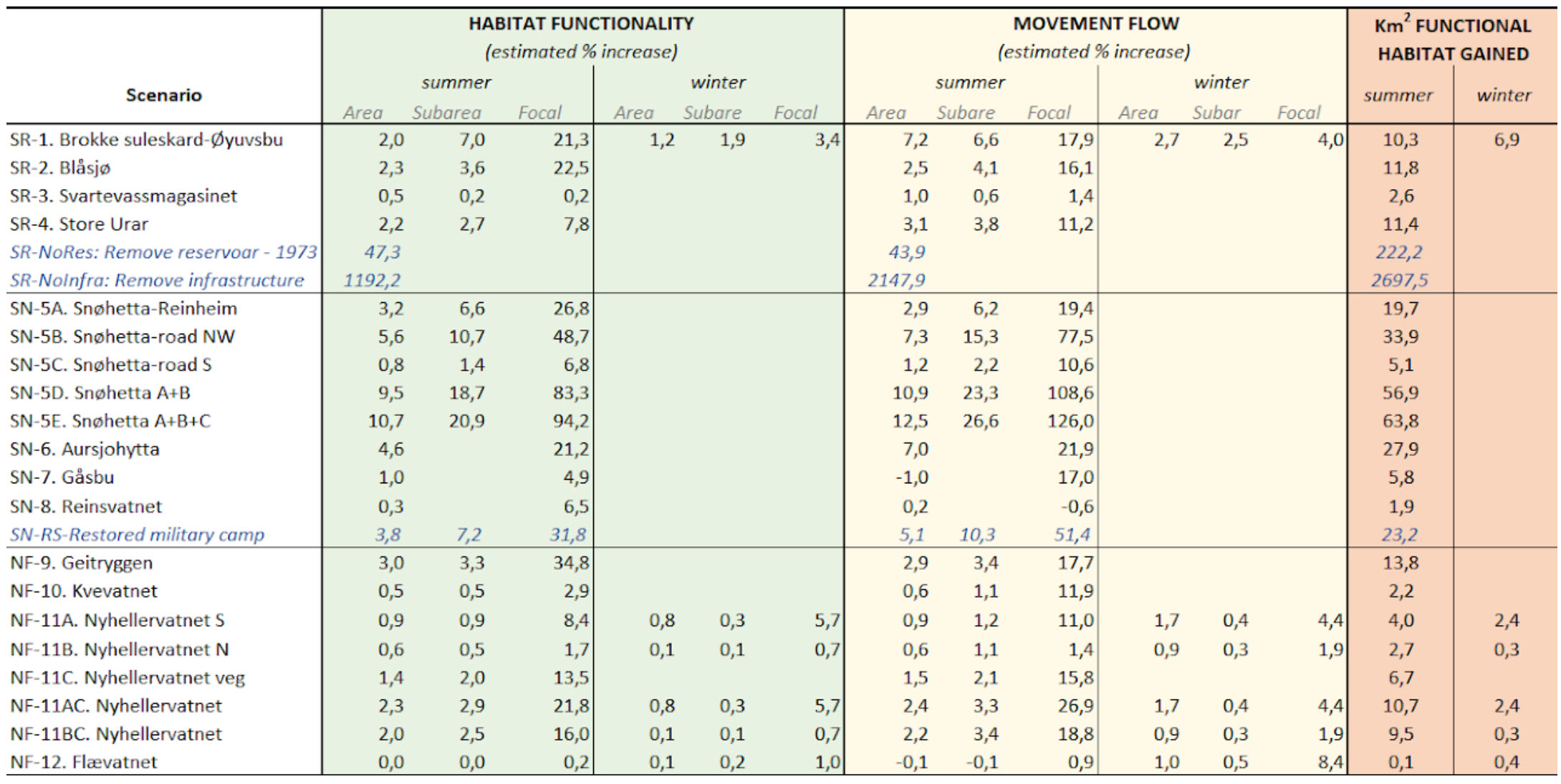

The table below synthesises the results of all simulations tested in Setesdal Ryfylke, Snøhetta, and Nordfjella wild reindeer management areas within the project RenewableReindeer (a detailed description of each result is presented in [2]). In addition, we tested for 37 land-planning alternatives in the that additional simulations for mitigation measures in Hardangervidda are shown in [5]. Each result is identified with the same code as above (SR = Setesdal Ryfylke, . Results are presented for the entire wild reindeer managment area, for each sub-areas, and for each focal areas (though results for focal areas are only indicative, as their delineation is arbitrary). Results are presented for summer and for winter, where it has been requested by the users. Results areexpressed both as % (% funcional habitat gained, or % movement flow gained), and in Km2 Equivalent Connected Habitat, as explained in [1].
