Quick-start guide to interpret the different maps

The Maps illustrate how reindeer perceive the landscape with respect to resources, functional areas, corridors, barriers, cumulative impacts and human footprint. Maps are based on statistical models combining reindeer GPS data with many environmental variables (food, topography, climate, vegetation dynamics etc.), infrastructure (roads, cabins, trails, hydropower, powerlines etc.), and human disturbance (tourist volume). Both the degree of avoidance of infrastructure and their Zone of Influence are estimated [16]; the estimated degree of avoidance or selection for all these variables is illustrated at the bottom of this page (for Norwegian description see here [0]). Maps are comparable across areas, and highlight the most imporant functional areas and corridors in Norway. Most maps are avaialble for the entire Norway - although not shown here [0]. Maps can be grouped into two groups:

All maps are needed to undersand reindeer habitat. However, only bird-eye view maps (2) allow to understand which areas are the most important in the entire landscape, and should therefore be prioritized for conservation or restoration

All images: Panzacchi et al 2022 (CC BY-SA)

Images
Images



Pixel-focused maps

Assess each pixel in isolation, irrespective from its surroundings

Fig. refer to summer, Hardangervidda [8]

HABITAT QUALITY / SUITABILITY MAP:

Greener pixels provide more suitable resources, preferred by reindeer (e.g. preferred vegetation, topographic and & climatic conditions) while lighter pixels tend to be avoided (e.g. due to roads, cottages, tourist volume & more [1,8,16, 17, 19]). Shows all suitalbe areas, including those reindeer cannot access (or can no longer access); this map can thus be useful to identfy areas that are no longer used due to loss of migration corridors


HABITAT PERMEABILITY MAP/BARRIERS:

Darkest pixels represent impermeable barriers for the species' movements (e.g. fences, steep slopes, infrastructures); lighter pixels can be easily traversed by the species



Landscape-focused maps

Consider connectivity, highlight most functonal areas and corridors & help prioritizing [7,17]

Maps produced with ConScape [7] (ConnectedLandscape)

HABITAT FUNCTIONALITY MAP:

Lighter areas are at the same time good (provide good quality resources an little disturbance) and well connected to other good quality areas (reindeer can easily reach them). These are therefore the most functional areas (or, core areas) in the entire landscape. Darker areas are unsuitable and/or isolated/ poorly accessible [17, 7,4,5,6,8,9,14]. These maps higlight the most important areas used and needed by reindeer in the entire landscape, and thus can be used for prioritizing [14]


MOVEMENT CORRIDORS MAP:

Lighter colors indicate areas traversed by a higher number of reindeer moving among functional areas, i.e. the most crucial corridors and bottle necks to maintain connectivity within an area [17, 4,5,6,7,8,9,14]. Note that corridors between different areas (e.g. between Hardangervidda & Setesdal south or Nordfjella north), or between sub-areas (e.g. Snøhetta east & west) can be modeled by focussing on a larger area. NB: Results refer to the area shown (new corridors may appear in larger areas)



Human footprint maps

Visualize human impact on reindeer habitat [0,17]. Reindeer prefer areas with suitable natural resources and little disturbance. These maps show all these components together, and separately

SEE DASHBOARD HERE
These maps do not (yet) consider connectivity [feature under developent]

HUMAN FOOTPRINT MAP:

Darker colors indicate areas with the highest human impact on good reindeer habitat, i.e. areas that could potentially provide very suitable natural resources, BUT where there are also infrastructures and human activities avoided by reindeer [0, 3, 17, 19]. These area (potentially good, but "ruined" by human activities) can therefore be relevant for restoration


NATURAL POTENTIAL - "Nature Only" Scenario:

Darker colors indicate areas with potentially the best natural resources for reindeer, if there were no infrastructures or human activities [0, 3, 17, 19]



POTENTIAL IMPACT - "Humans Only" Scenario:

Darker colors indicate areas with the highest amount of infrastructures & human activities avoided by reindeer - irrespective from natural resources [0, 3, 17, 19]

ESTIMATES OF AVOIDANCE OR SELECTION OF INFRASTRUCTURE, HUMAN ACTIVITIES & LANDSCAPE FEATURES

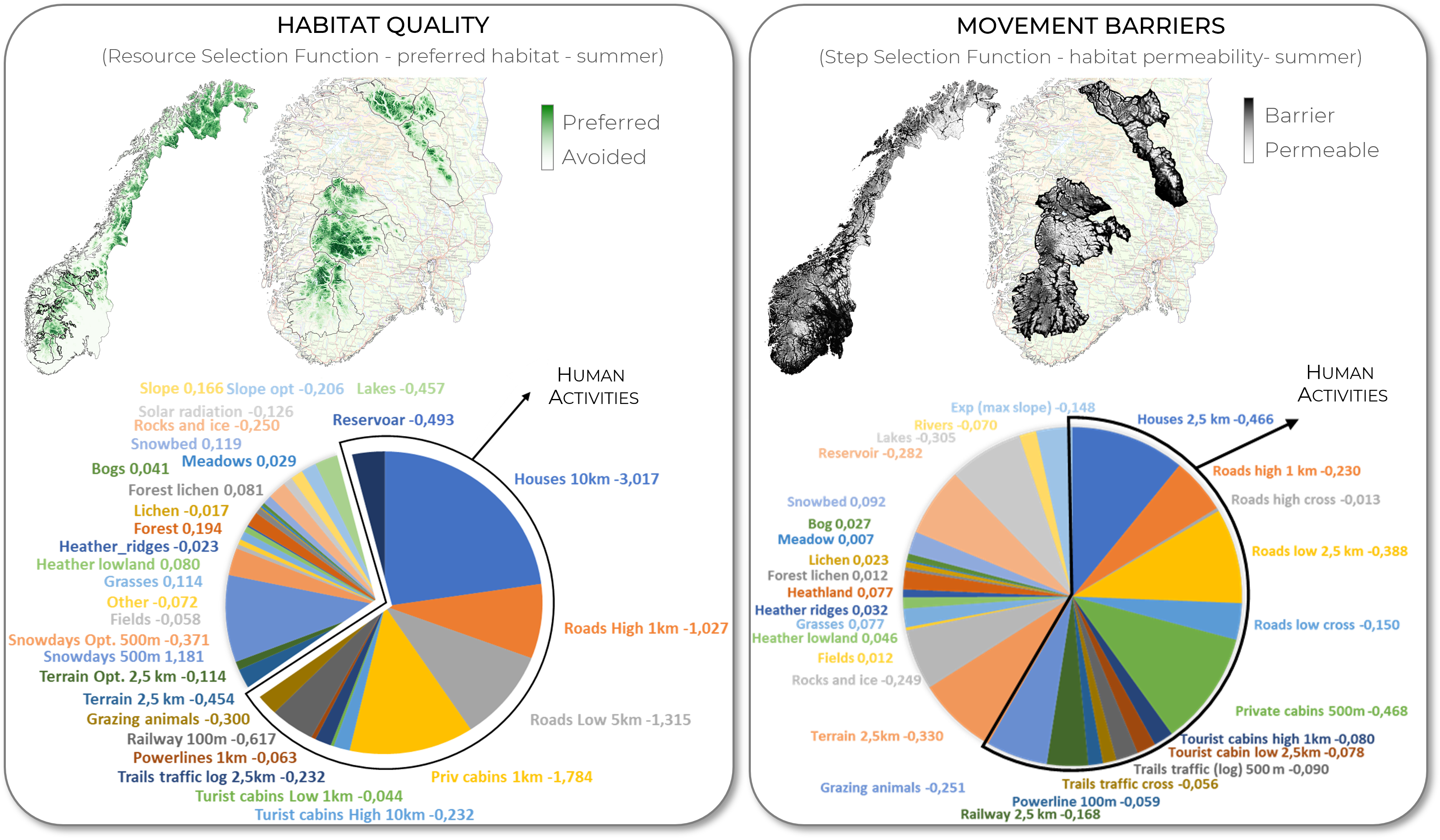

Below we illustrate the degree to which GPS-monitored reindeer prefer or avoid each variable (left), and the degree to which these represents barriers for their movements (right). These estimates take inot account both the degree of avoidance of infrastructure (e.g. how strongly a tourist resort is avoided) and their Zone of Influence (how far the effect is detectable) [16; 0]. All maps build upon the results of two analyses (Resource Selection Function [1; 16], and Step Selection Function, right [2]) based on GPS data and on a range of environmental variables (incl. food, topography, climate), infrastructure (incl. roads, cabins, trails, hydropower, powerlines), and human activities (tourist volume).
